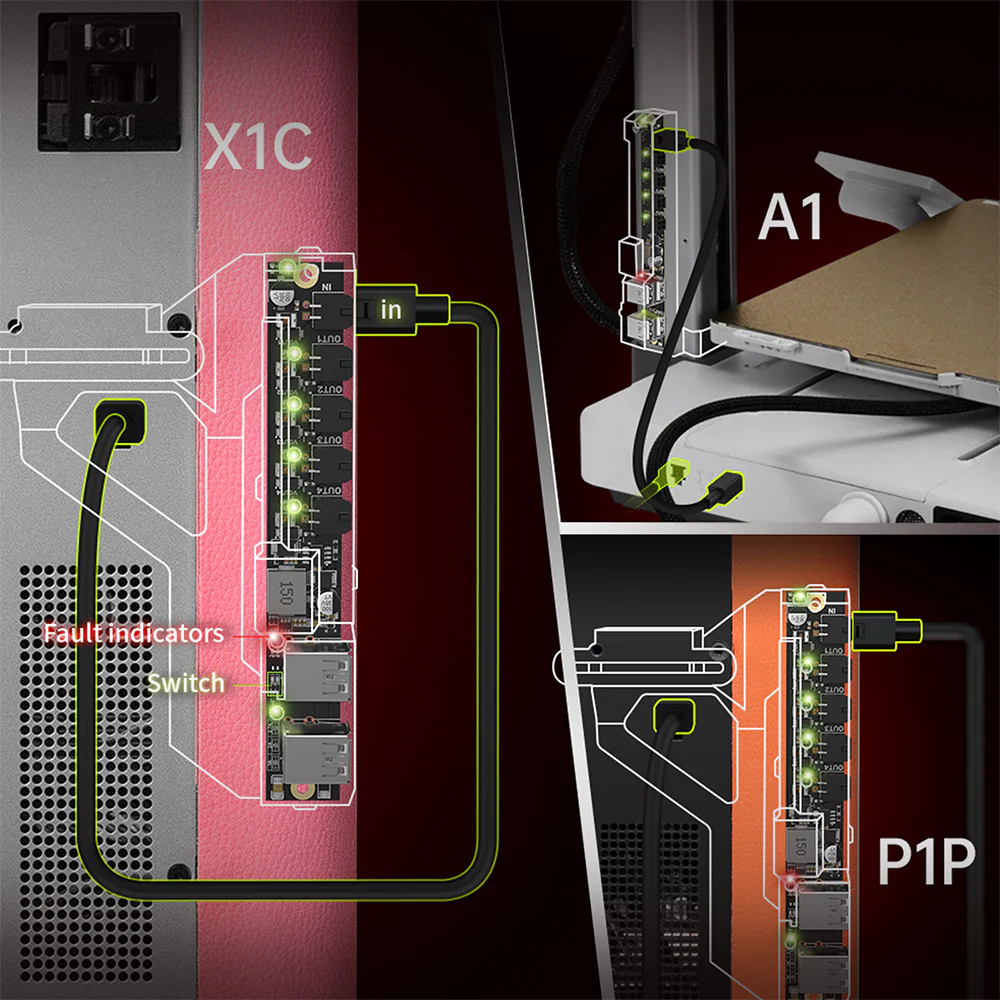

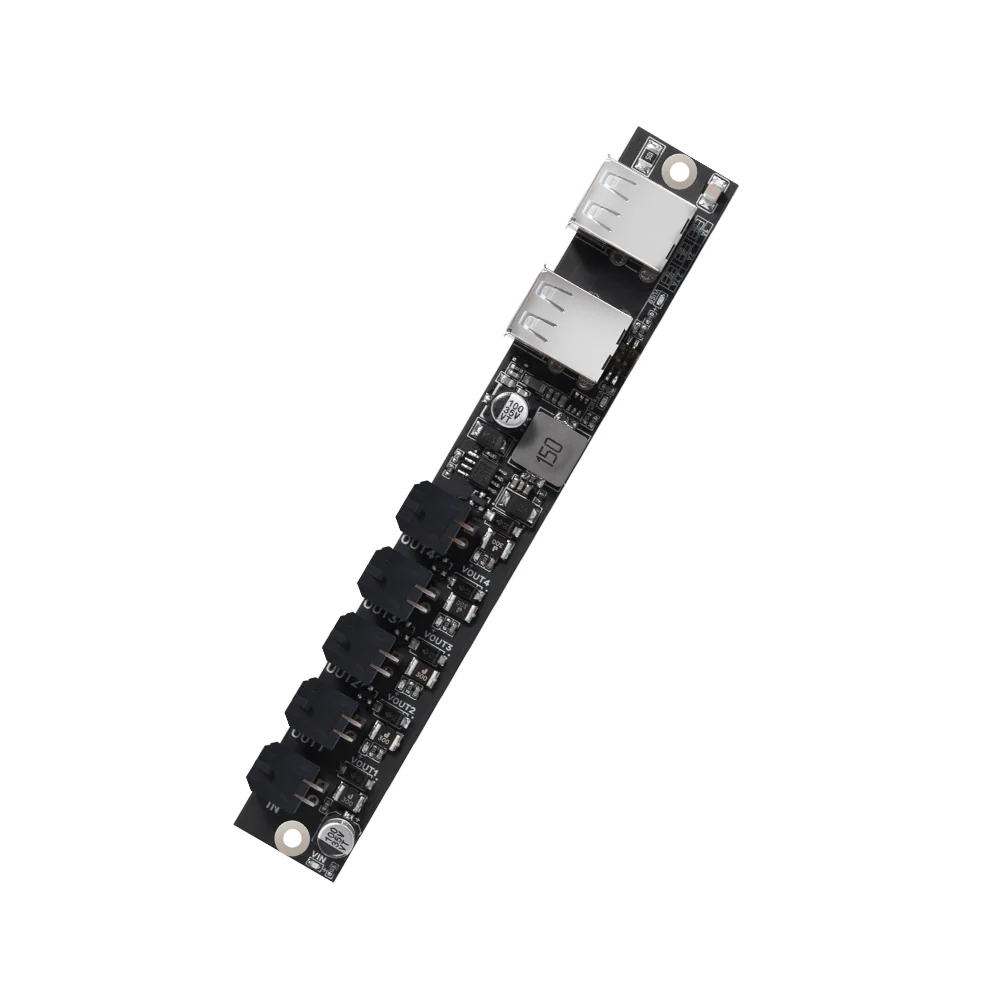

BIGTREETECH Panda Branch – 4-Port 5V USB Expansion Board with Adaptable Current Protection for Bambu Lab P1/X1/A1 Series Printers
The BIGTREETECH Panda Branch is a powerful 4-port 5V USB expansion board designed to expand the capabilities of your Bambu Lab P1, X1, and A1 series 3D printers. It provides 4× USB-A 5V outputs while offering intelligent current protection and flexible configuration, making it the ideal solution for powering multiple accessories such as LED light strips, Panda Touch, fans, or other low-power devices.
With a sleek 20mm profile and clear LED indicators, the Panda Branch delivers reliable power distribution and instant fault alerts, ensuring safe and stable operation.
Key Features:
- 4× Independent 5V USB-A Outputs — Expand one port into four for simultaneous use of multiple devices.

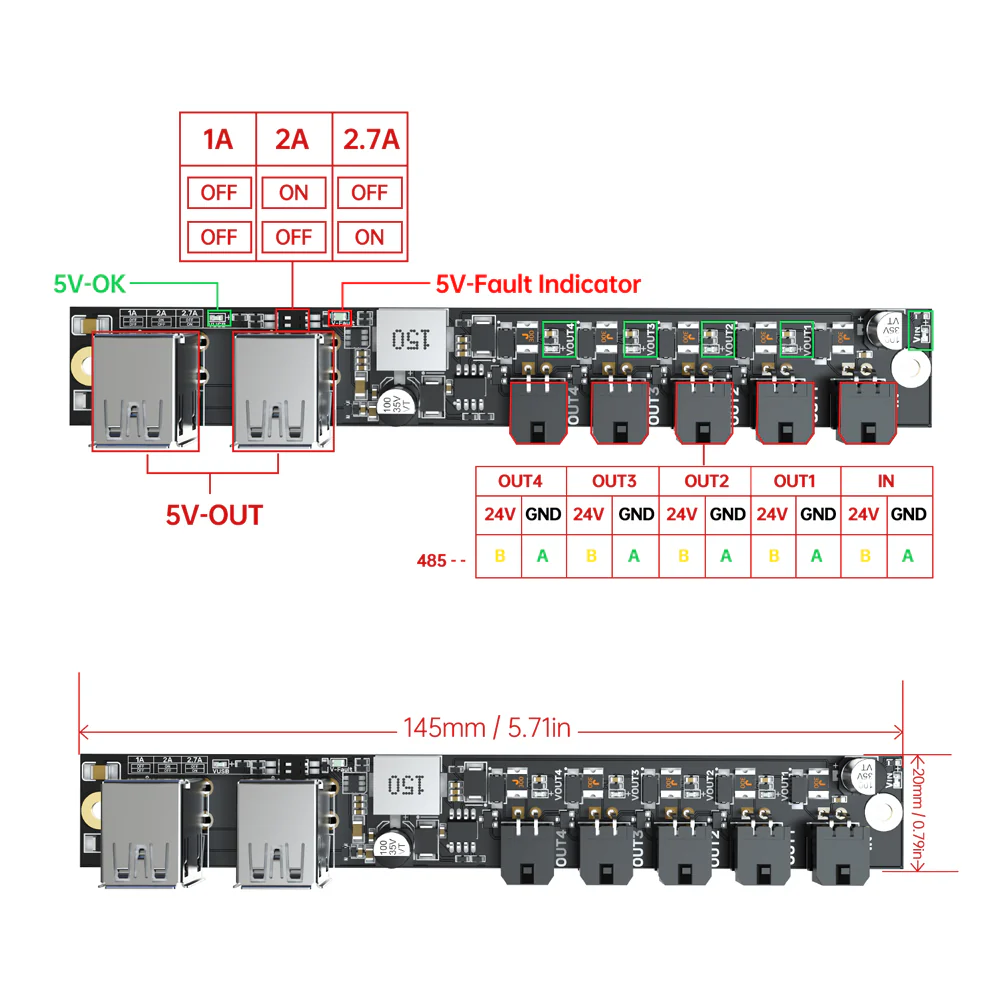

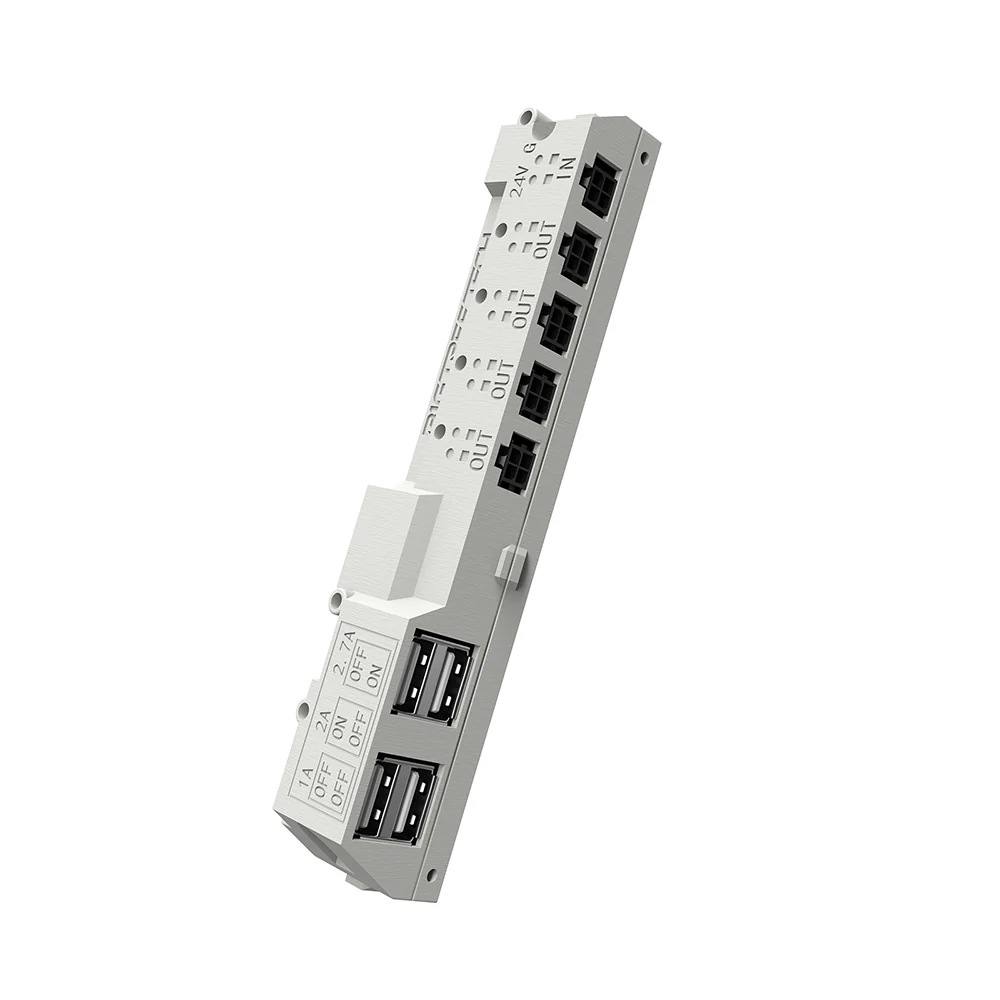

- Adaptable Current Settings — DIP switch allows easy selection of 1A, 2A, or 2.7A (peak) per output for precise power management.
- Comprehensive Protection — Overcurrent protection, reverse connection protection, and red fault indicator lights for immediate alerts.
- Sleek & Easy Installation — Compact design with consistent interface orientation; supports custom 3D printable mounting cases.
- Wide Compatibility — Perfect for Bambu Lab P1/X1/A1 series printers (connect AMS/AMS Lite via buffer when needed).
Specifications:
- Product Name: Panda Branch
- Input Voltage: DC 24V
- Output: 5V 2.7A (peak) × 4

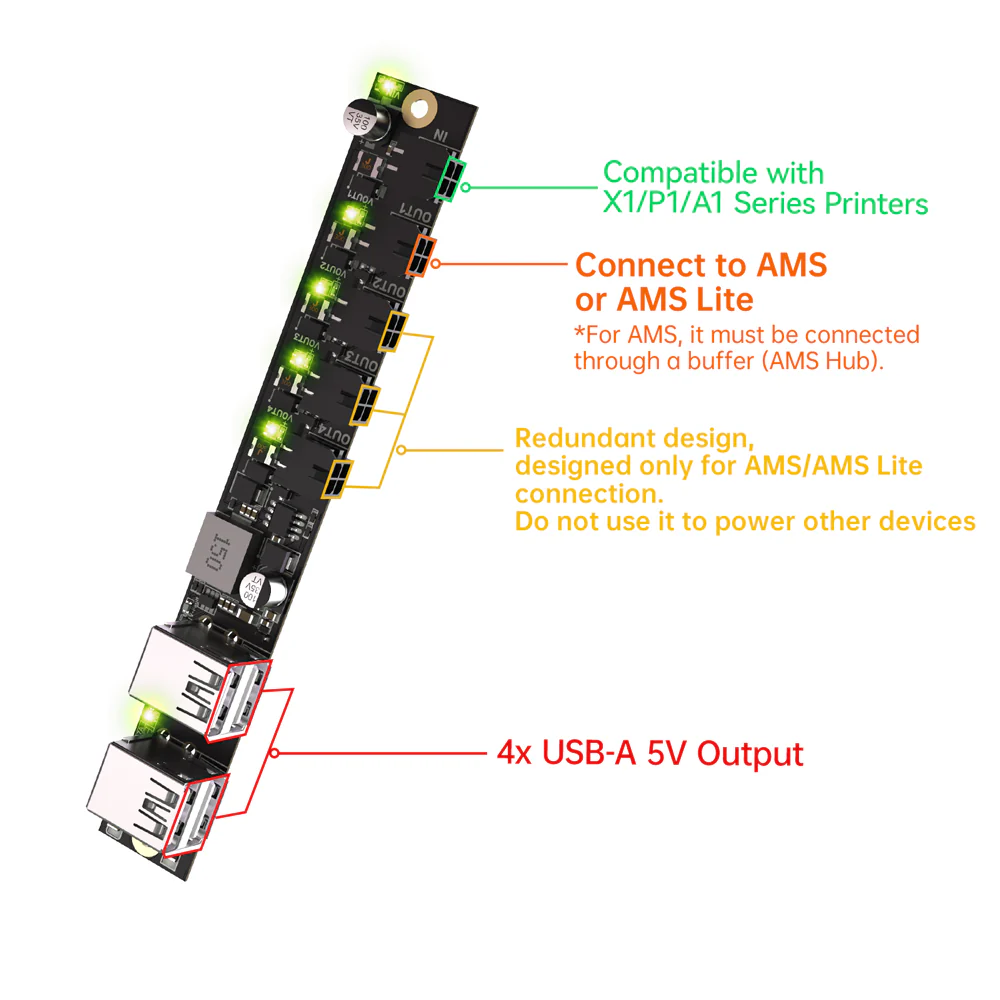

- Interface: 4× Type-A Female USB + MX3.0 2x2Pin (for AMS/AMS Lite)
- Dimensions: 145mm × 20mm × 20mm (main board)
- Note: Redundant MX3.0 interfaces are for AMS/AMS Lite only — do not use for other devices.
What’s in the Box?
- Panda Branch × 1
- Power Cable × 1
- M3 × 10 Self-tapping Screws × 4
- M3 × 35 Socket Head Cap Screws × 2
- BTT Duck × 1
- Package Box × 1
More Ports. More Possibilities. Whether you want to add extra LED lighting, connect a touch screen, or power small fans, the Panda Branch gives your Bambu Lab printer cleaner wiring, smarter power management, and greater expandability — all with reliable protection.
