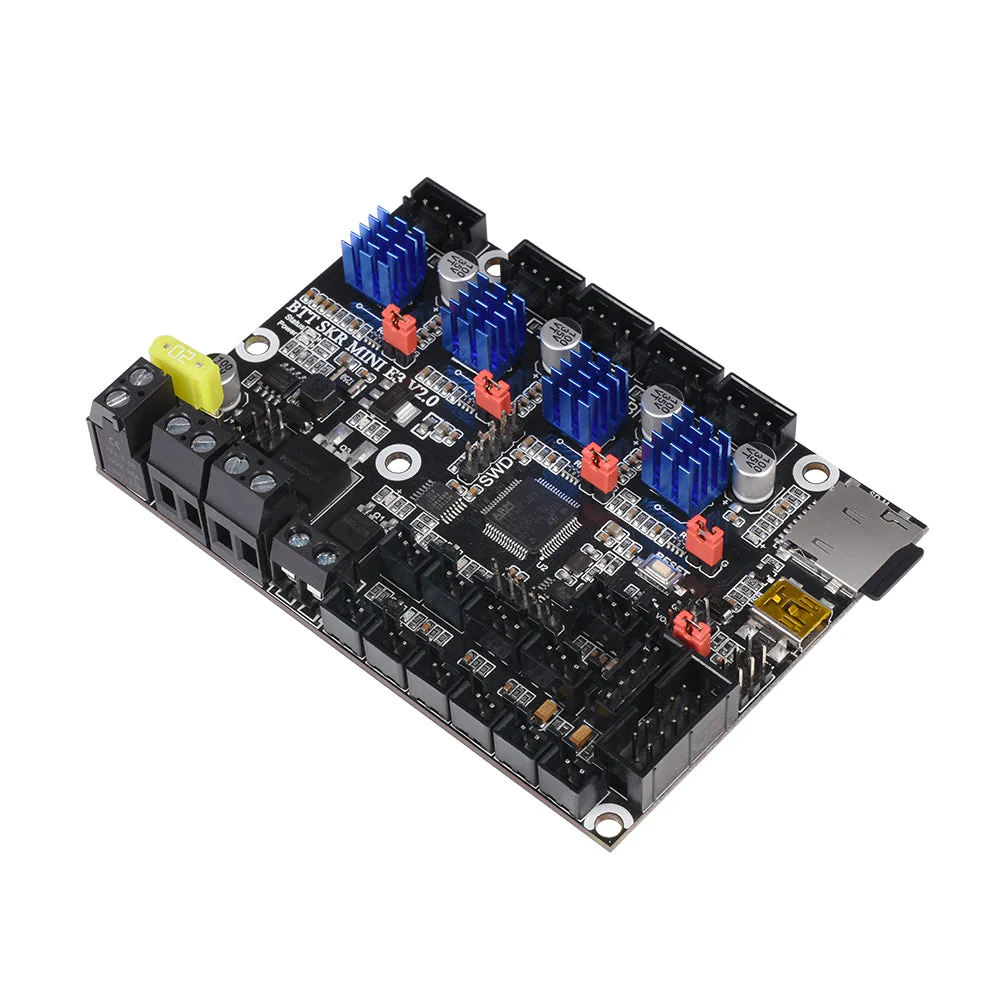

BIGTREETECH SKR MINI E3 V2.0 32 Bit Control Board Integrated TMC2209 UART For Ender 3

Upgrade your Creality printer with the BigTreeTech SKR Mini E3 V2.0 32-Bit Control Board — a powerful, silent motherboard featuring integrated TMC2209 UART stepper drivers. Designed as a direct drop-in replacement for the stock Ender 3 mainboard, it delivers smoother motion, significantly quieter operation, and improved overall performance.

Built around an ARM Cortex-M3 STM32F103RCT6 MCU, this 32-bit board supports advanced features like sensorless homing (StallGuard) and precise microstepping. The onboard TMC2209 drivers provide StealthChop2 ultra-quiet technology while maintaining strong torque and reliability.

Key Features:

• Integrated TMC2209 UART Drivers — 5 channels (X, Y, Z1, Z2, E) with ultra-silent StealthChop2 and SpreadCycle modes
• 32-Bit Processing — Faster and more responsive than 8-bit boards for smoother prints and better handling of complex G-code
• Sensorless Homing Support — Eliminates the need for physical endstops on X and Y axes
• Dual Z-Axis Support — Independent Z motors for improved bed leveling and stability

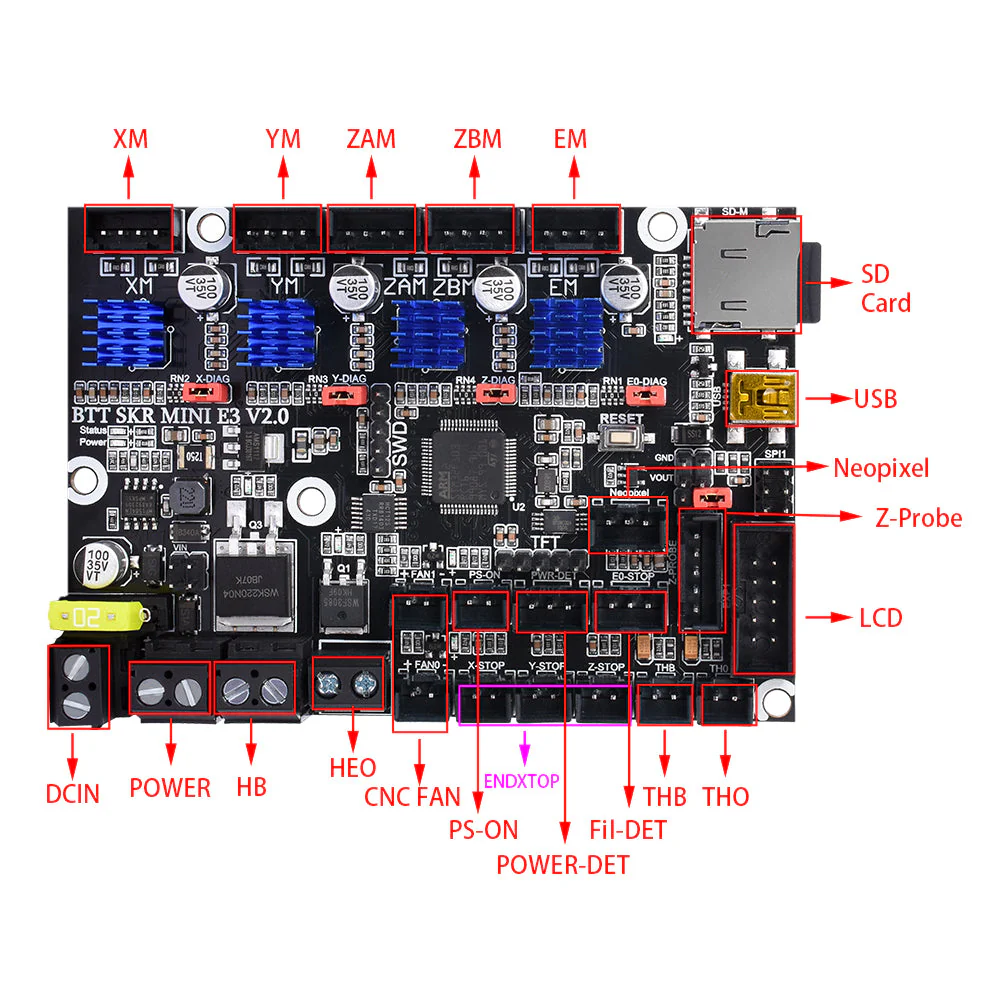

• Rich Interfaces — BLTouch / probe support, filament runout sensor, RGB lighting, TFT/LCD displays, and more
• Power Input — 12V / 24V compatible with robust protection
• Compact Form Factor — 100.75 × 70.25mm, perfect fit for Ender 3-style printer frames



Files:

SKR MINI E3 V2.0 User Manual
