Product Description
\nUpgrade your 3D printer with the BIQU H2 V2S Lite Lightweight Direct Drive Extruder — an all-in-one hotend and extruder designed for high-speed printing, reduced weight, and easy maintenance.
\nWeighing only 175g (including heater cartridge, thermistor, and fan), the H2 V2S Lite features a hollow-out aluminum alloy design for superior heat dissipation and lower inertia, resulting in more accurate positioning and faster printing. It delivers up to 45mm³/s flow rate thanks to the longer heater block and 0.6mm brass nozzle.
\nKey Features:
\n- \n
- \nUltra-Lightweight (175g) — Reduces moving mass for better dynamics, less ringing, and higher acceleration \n
- \nHigh Flow Performance — 45mm³/s (2700mm³/min) for faster prints with standard and engineering filaments \n
- \nDual Gear Extrusion — 7:1 gear ratio with hardened steel gears for strong 7.5kg pushing force and reliable retraction \n
- \nQuick-Detach Bi-Metal Heat Break — Copper + Grade 5 titanium with pre-applied thermal grease for easy maintenance using a hex key \n
- \nLabor-Saving Lever — Easy filament loading/unloading with adjustable tension screw for different filament types \n
- \nImproved Cooling — Enhanced heatsink and fan design for rapid cooling and stable high-temperature operation \n
- \nMax Temperature — 270°C with 70W 24V heater cartridge and NTC100K thermistor \n
![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-1661841113160_1200x.png?v=1661841134\")
![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/1-1661852121968_1200x.jpg?v=1661852139\")

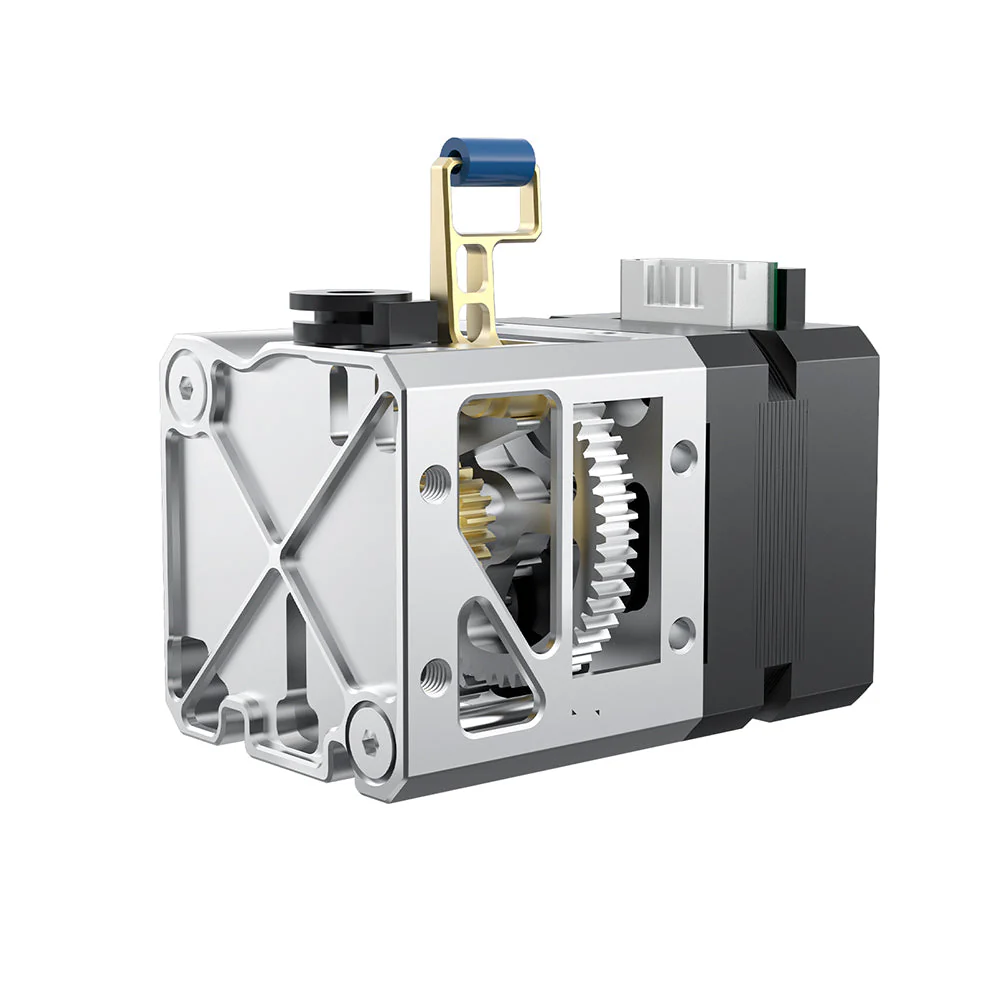

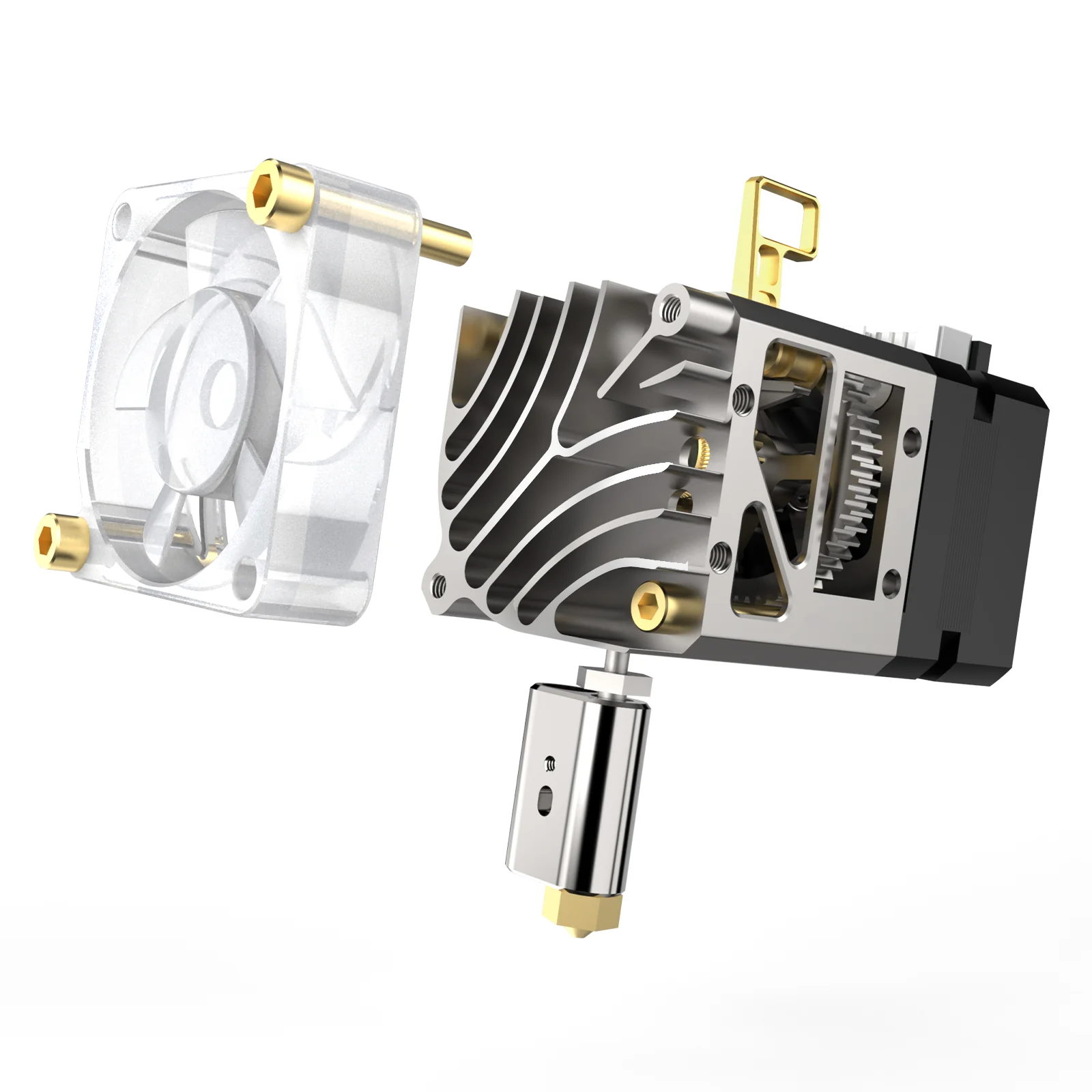

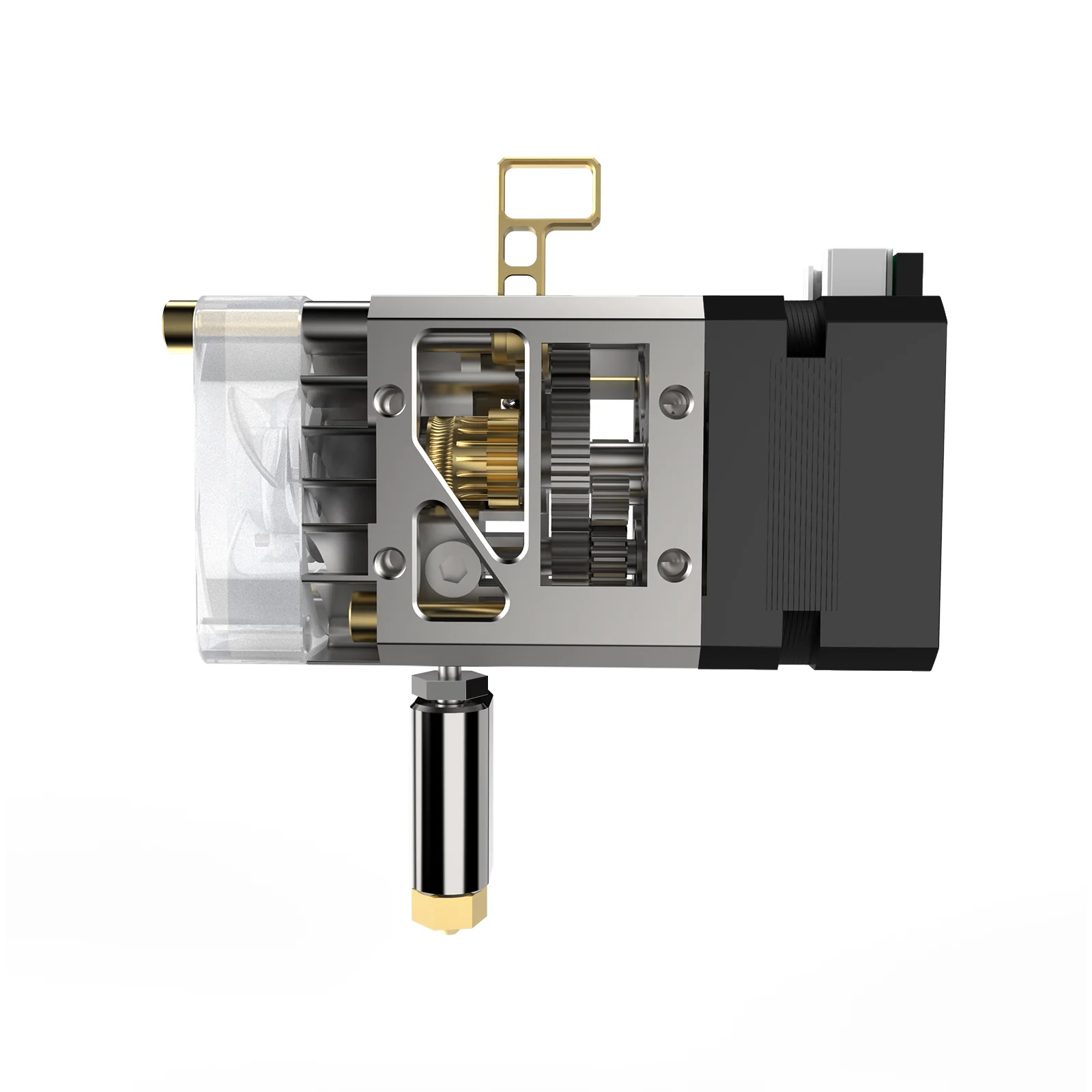

Lighter and Better Heat Dissipation
\nFeaturing a hollow-out design with a visible inner structure, H2 V2S Lite weighs only 175g, which contributes to less inertia and more accurate positioning.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/2-1661852141178_1200x.jpg?v=1661852157\")

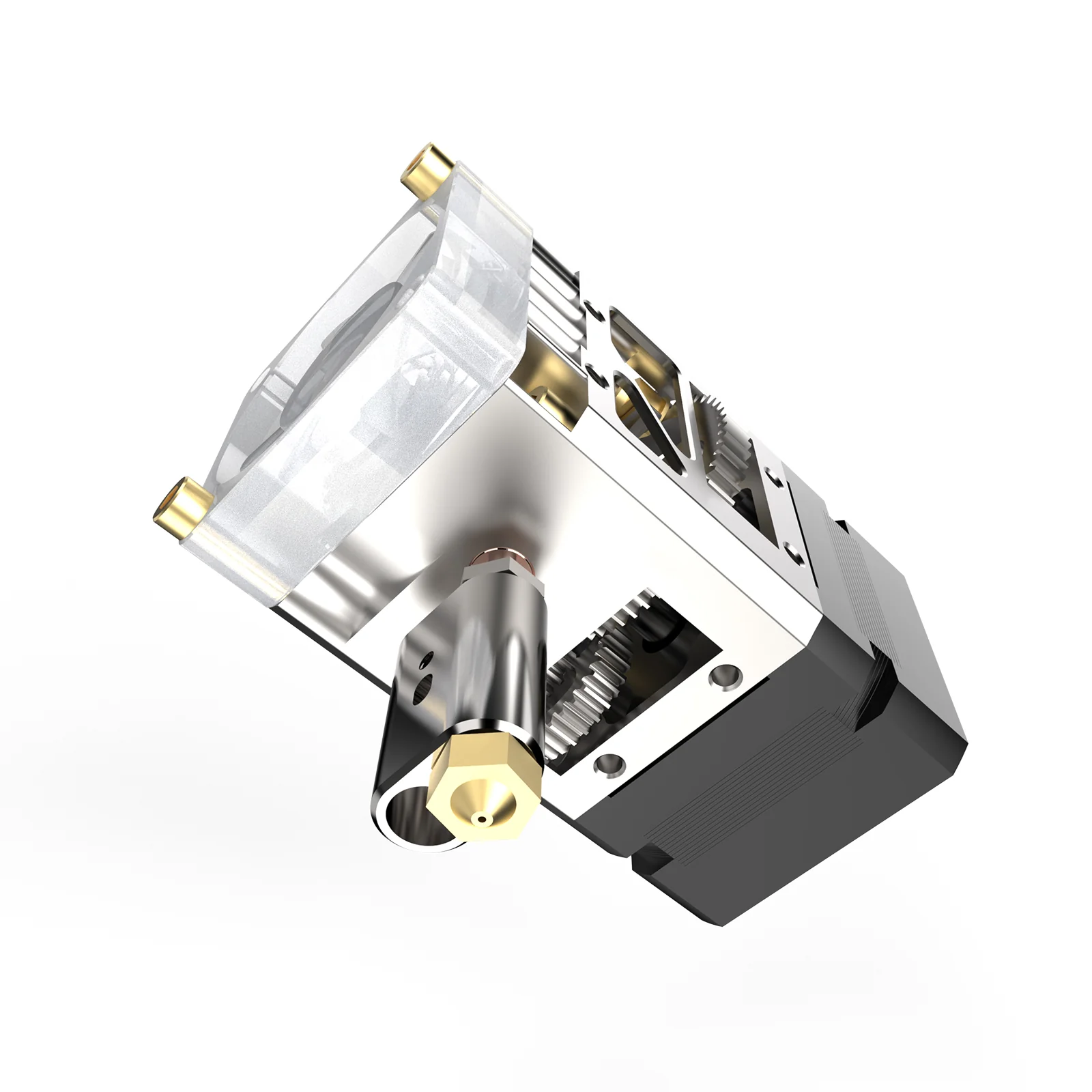

Rapid Cooling
\nAt the same time, the airflow is also improved to give better heat dissipation. Plus the heatsink and fan, H2 V2S Lite realizes a highly effective cooling.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/3-1661856147109_1200x.jpg?v=1661856163\")

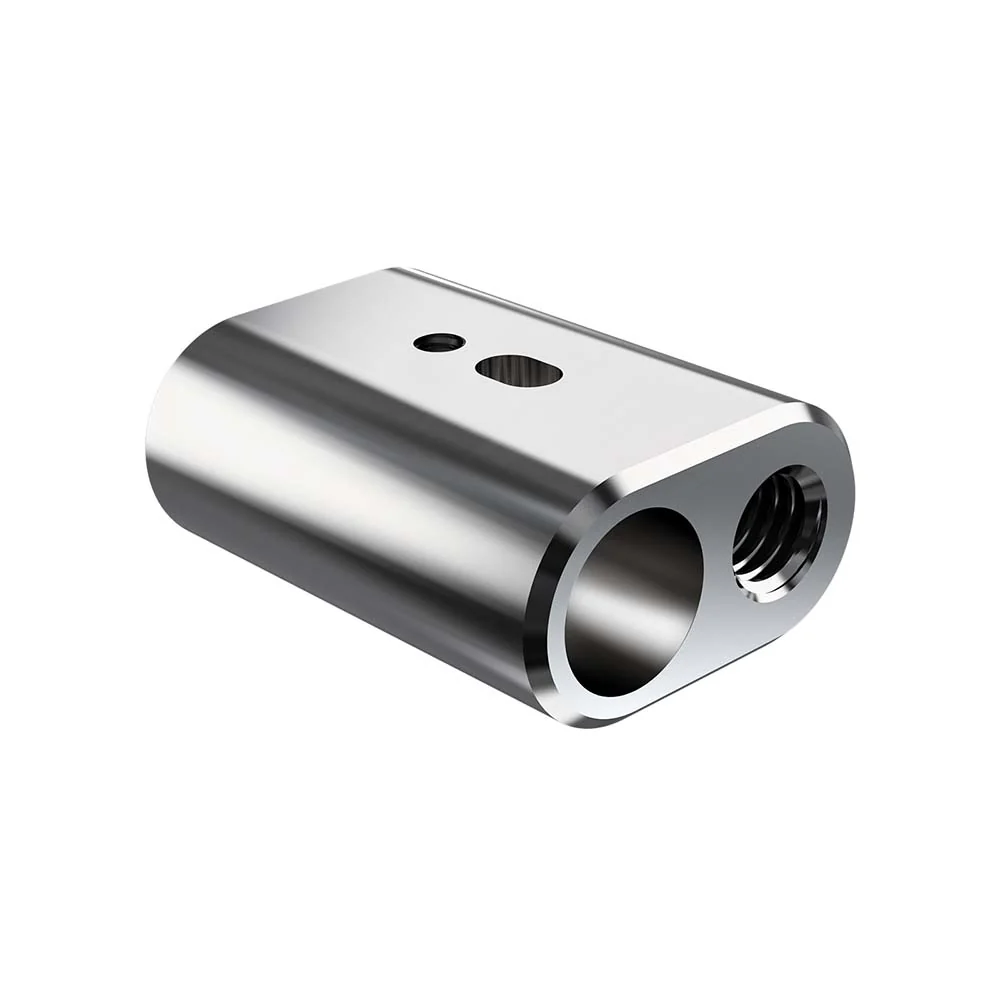

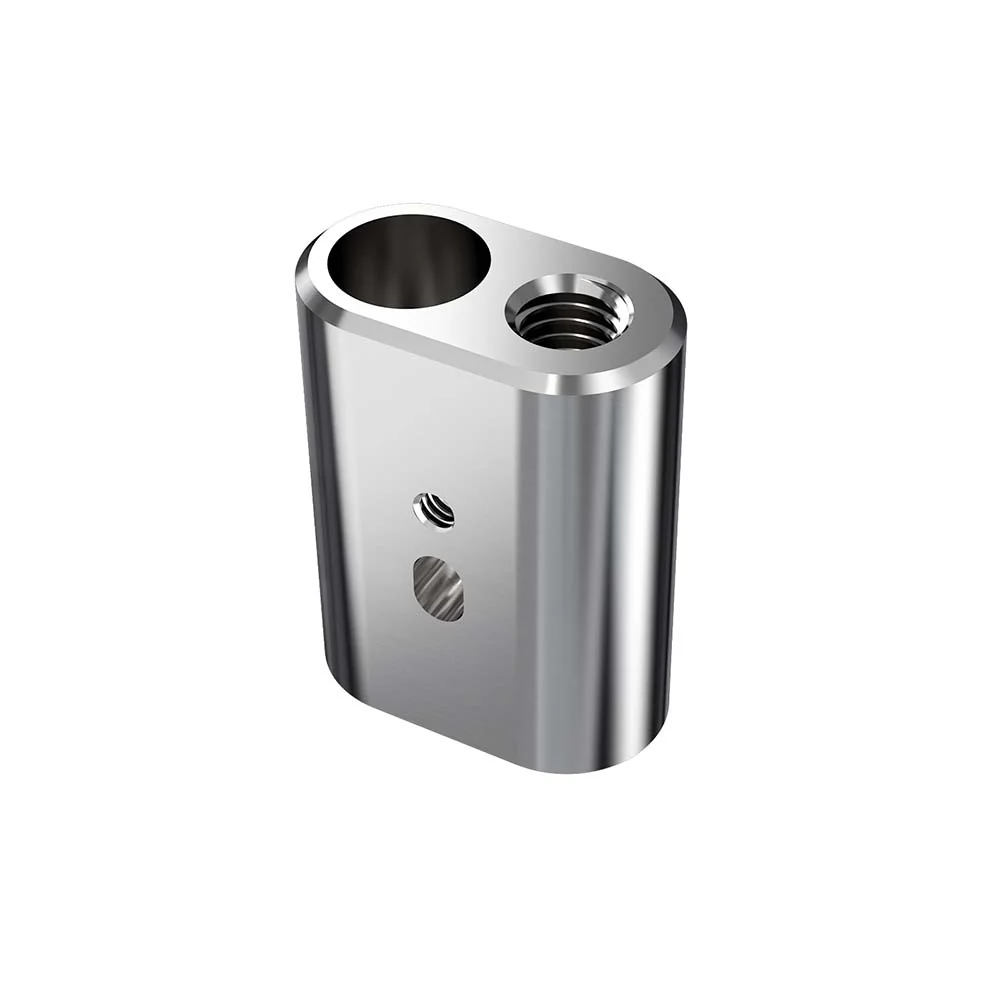

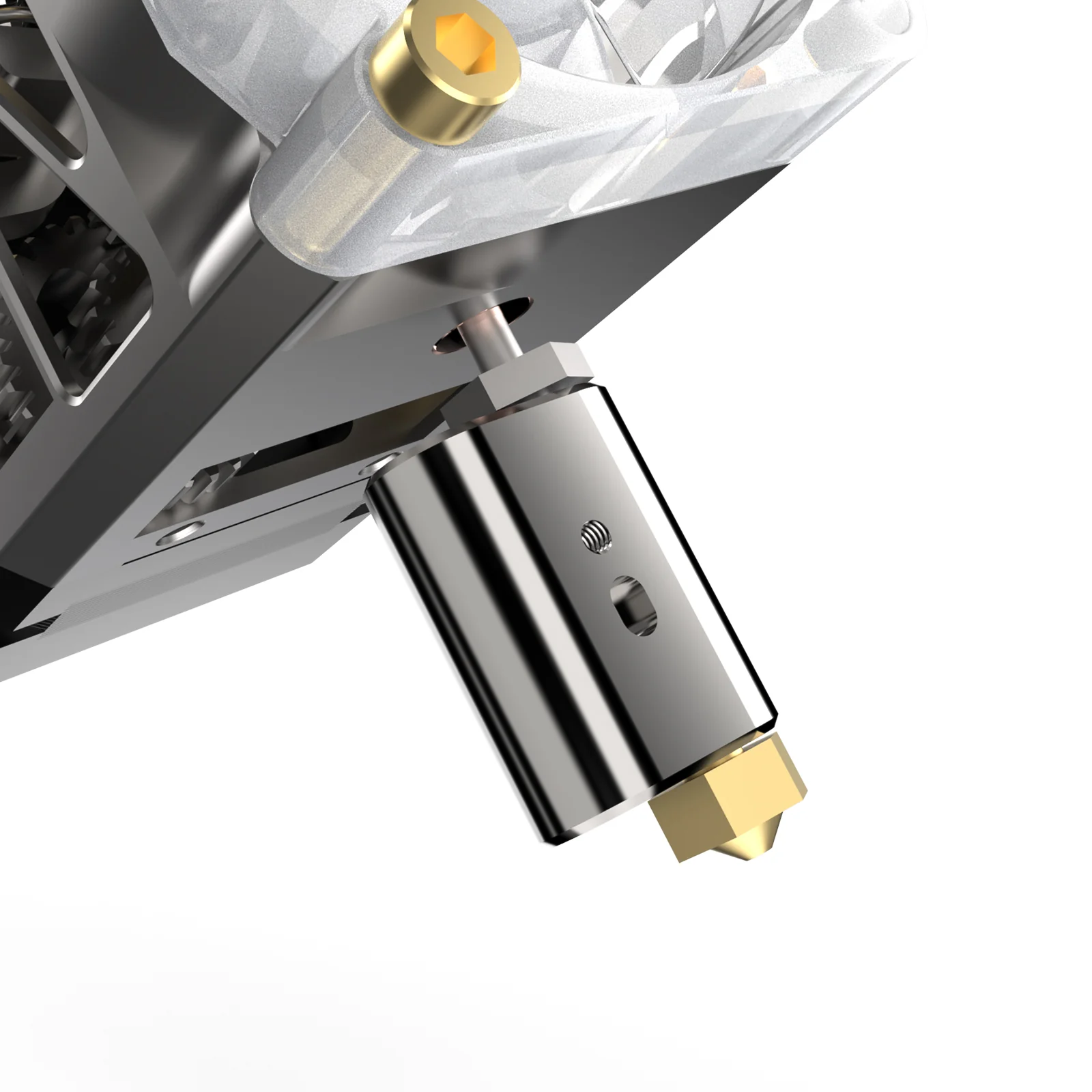

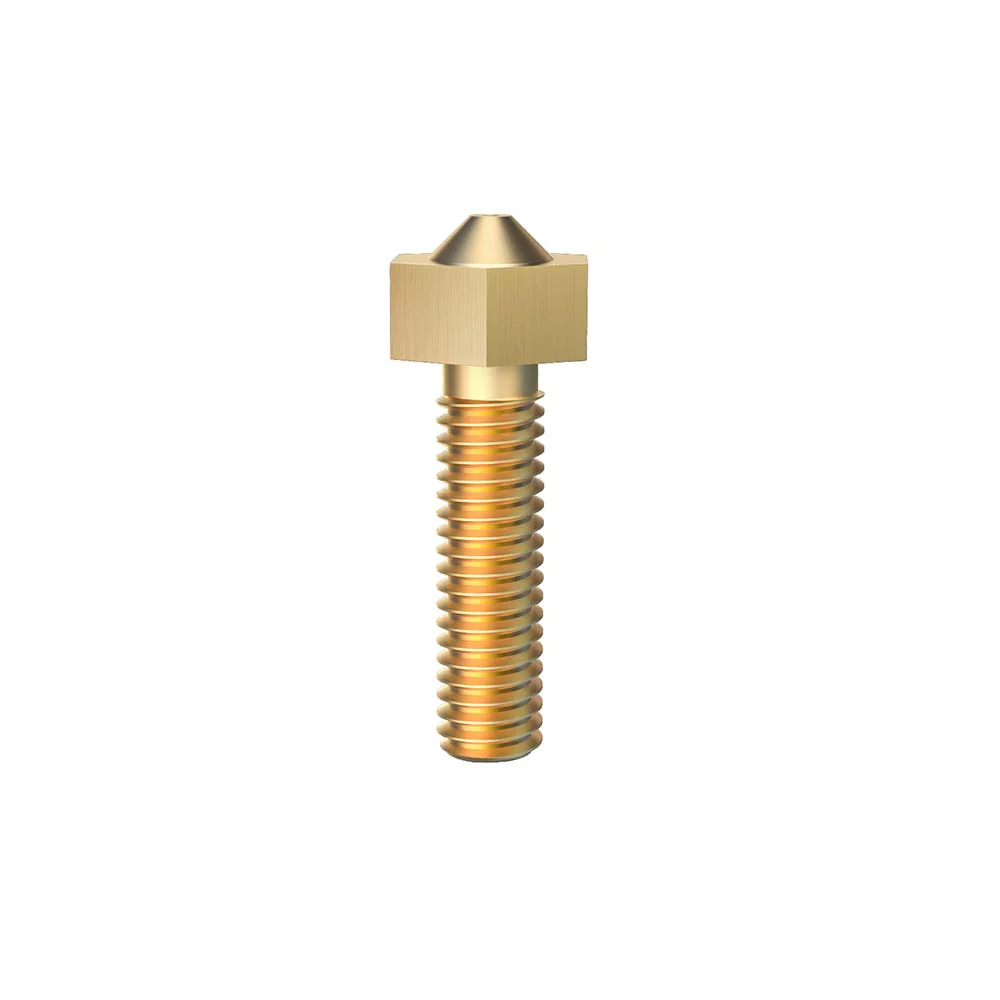

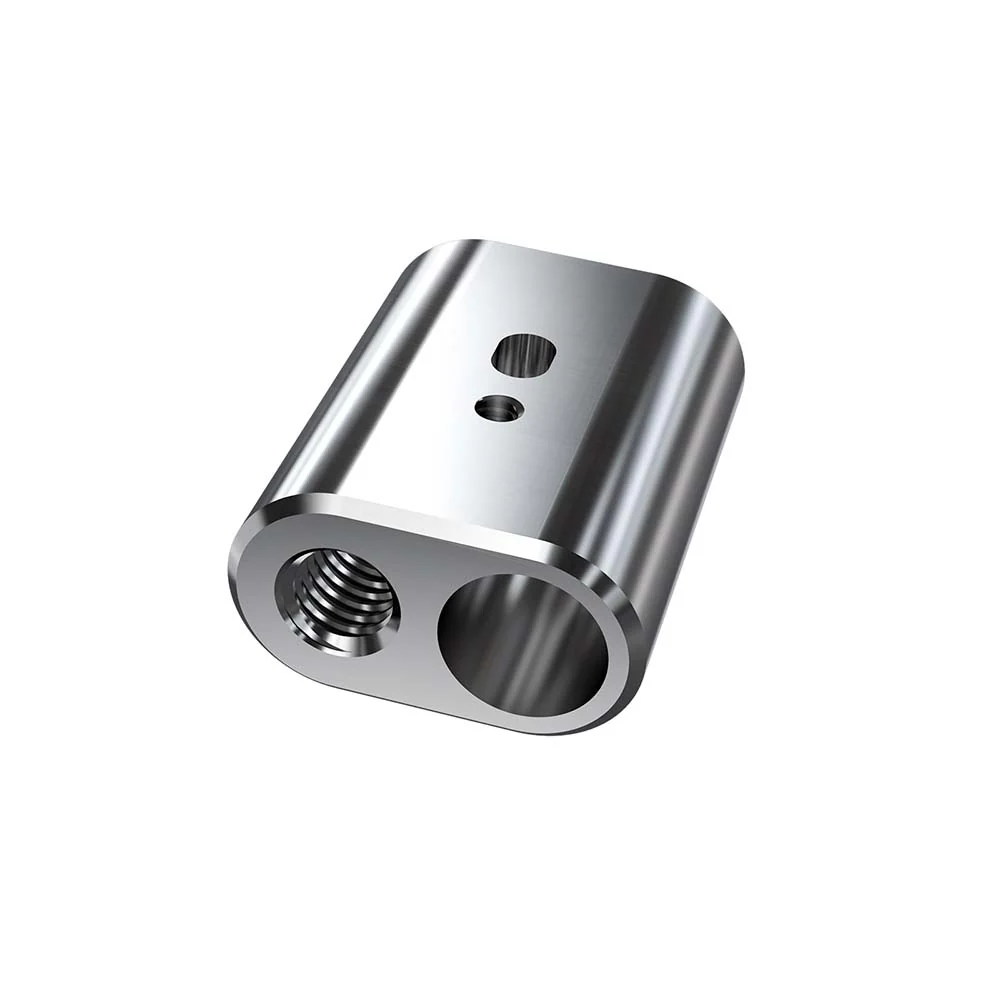

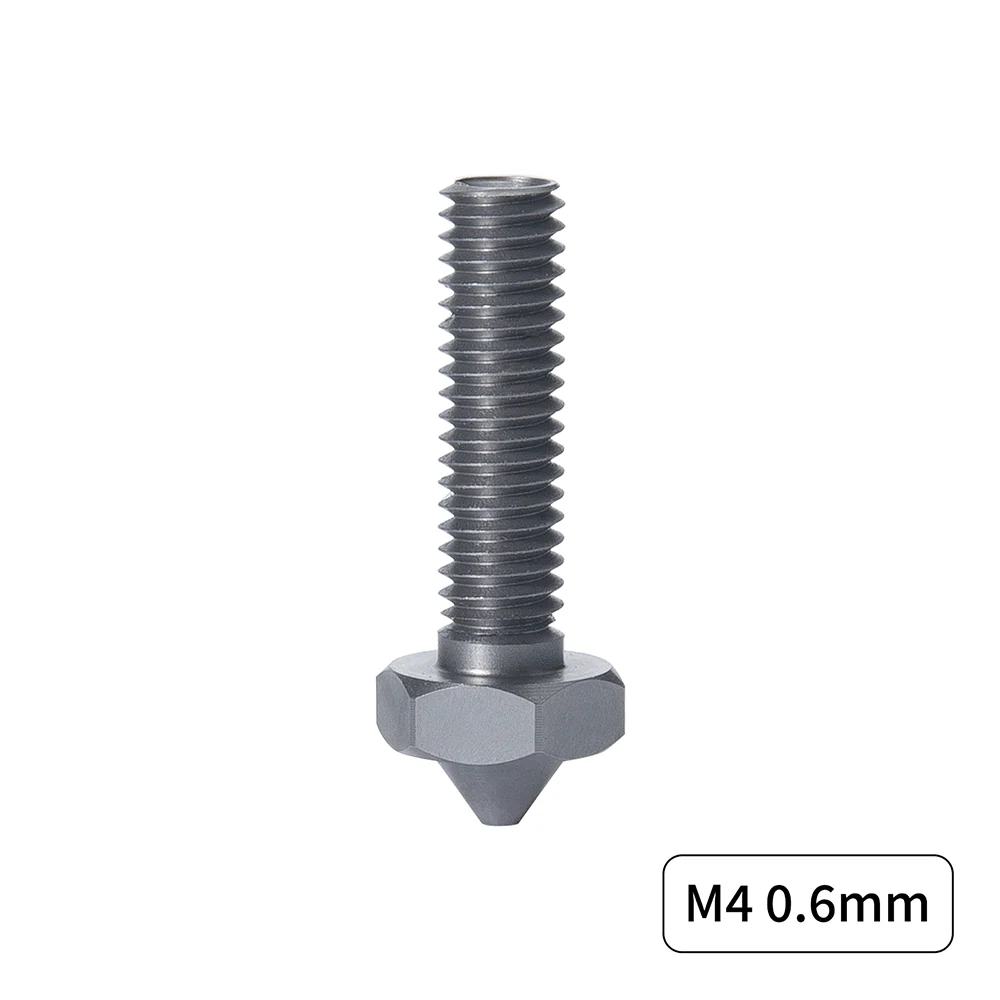

Higher Flow. Faster Printing

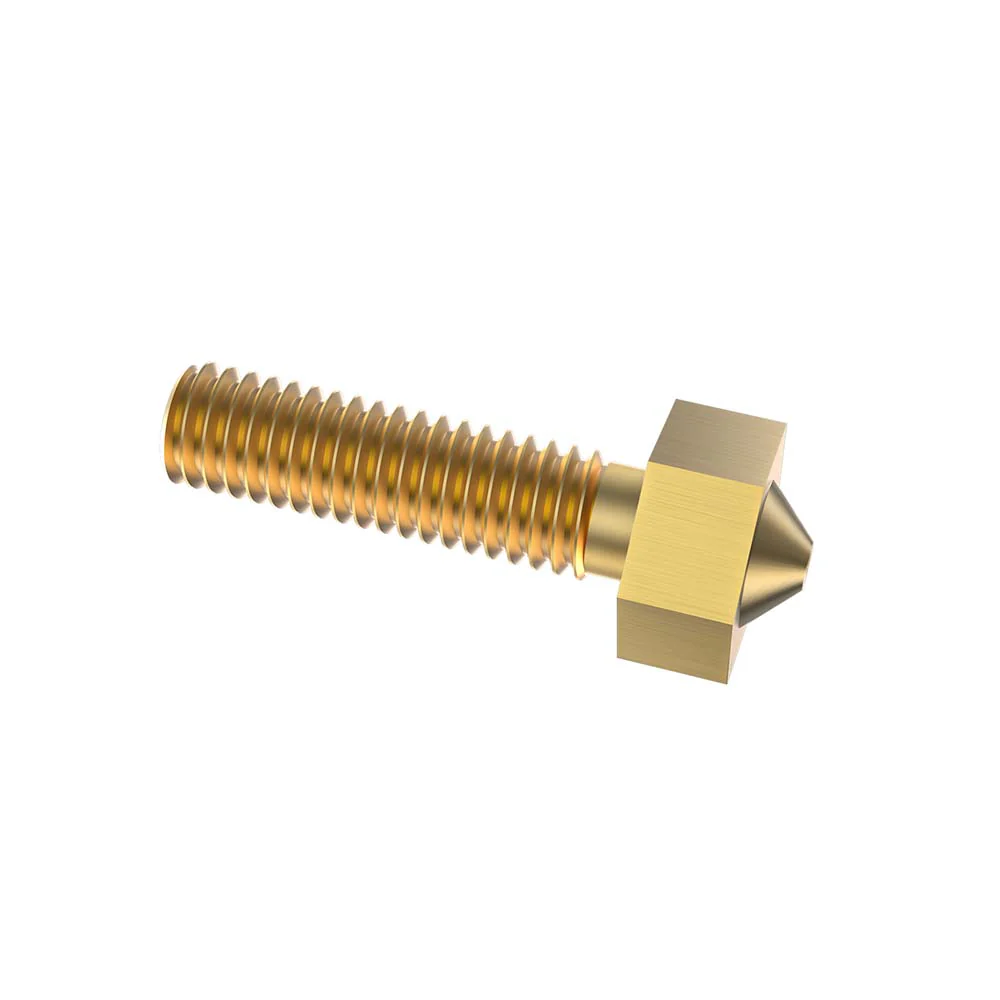

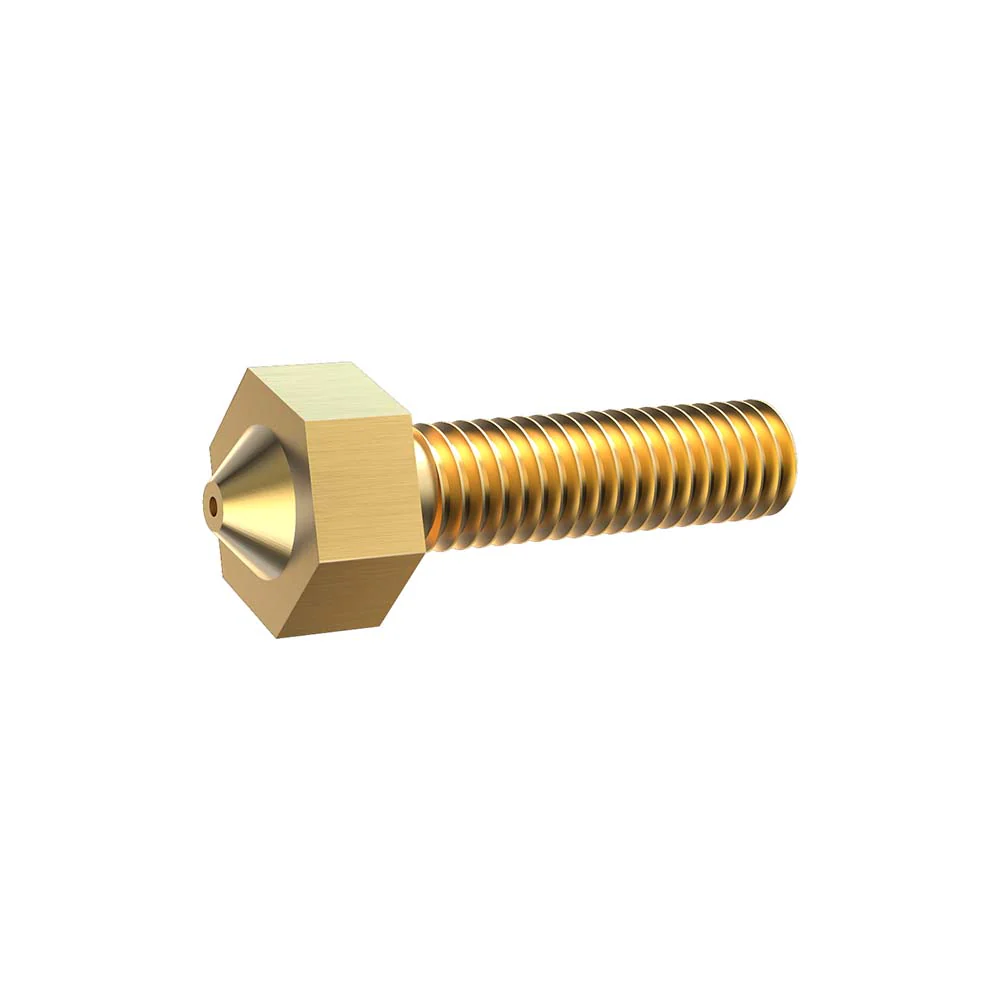

\nUsing a 0.6mm brass nozzle, and a longer heater block, H2 V2S Lite can output 45mm³/s to meet faster printing needs.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/4-1661856888277_1200x.jpg?v=1661856904\")

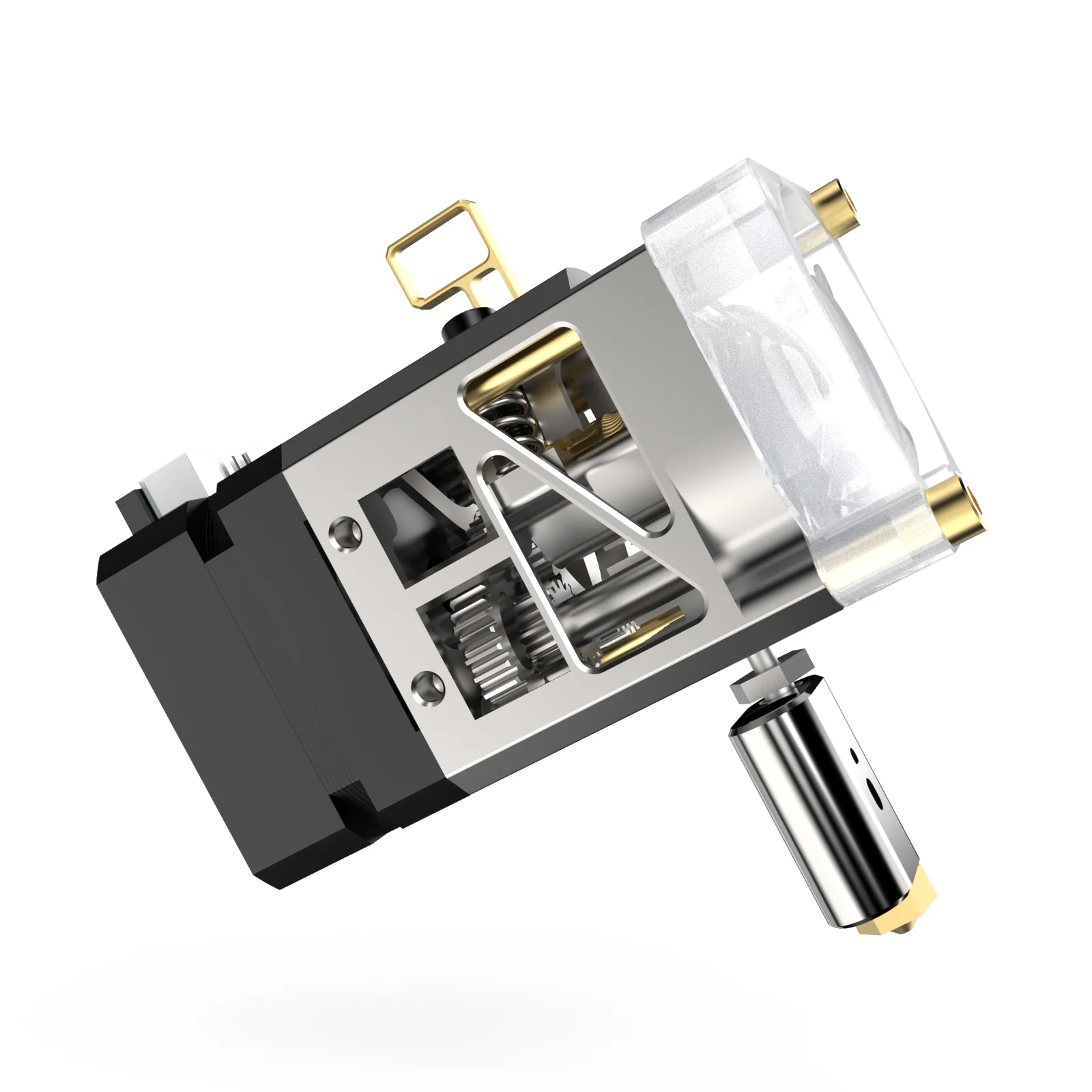

Labor-Saving Lever
\nThe upgraded lever, a labor-saving and convenient design, eliminates the need to continuously hold the handle when inserting or removing filament.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/5-1661856919206_1200x.jpg?v=1661856933\")

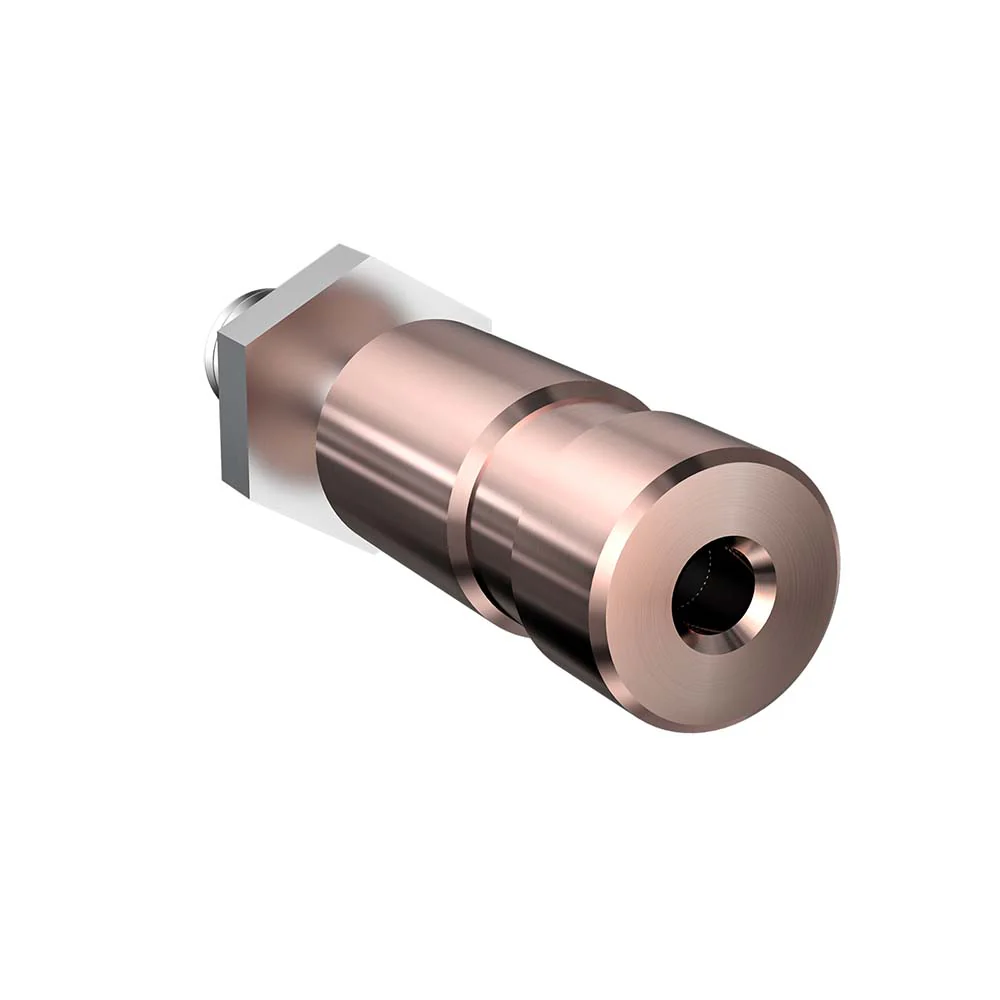

Quick Detach Heat Break
\nNow, with the quick detach design, you are allowed to remove the heat break by simply using a hex key,making maintaining much easier and more convenient.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/6-1661857095929_1200x.jpg?v=1661857111\")

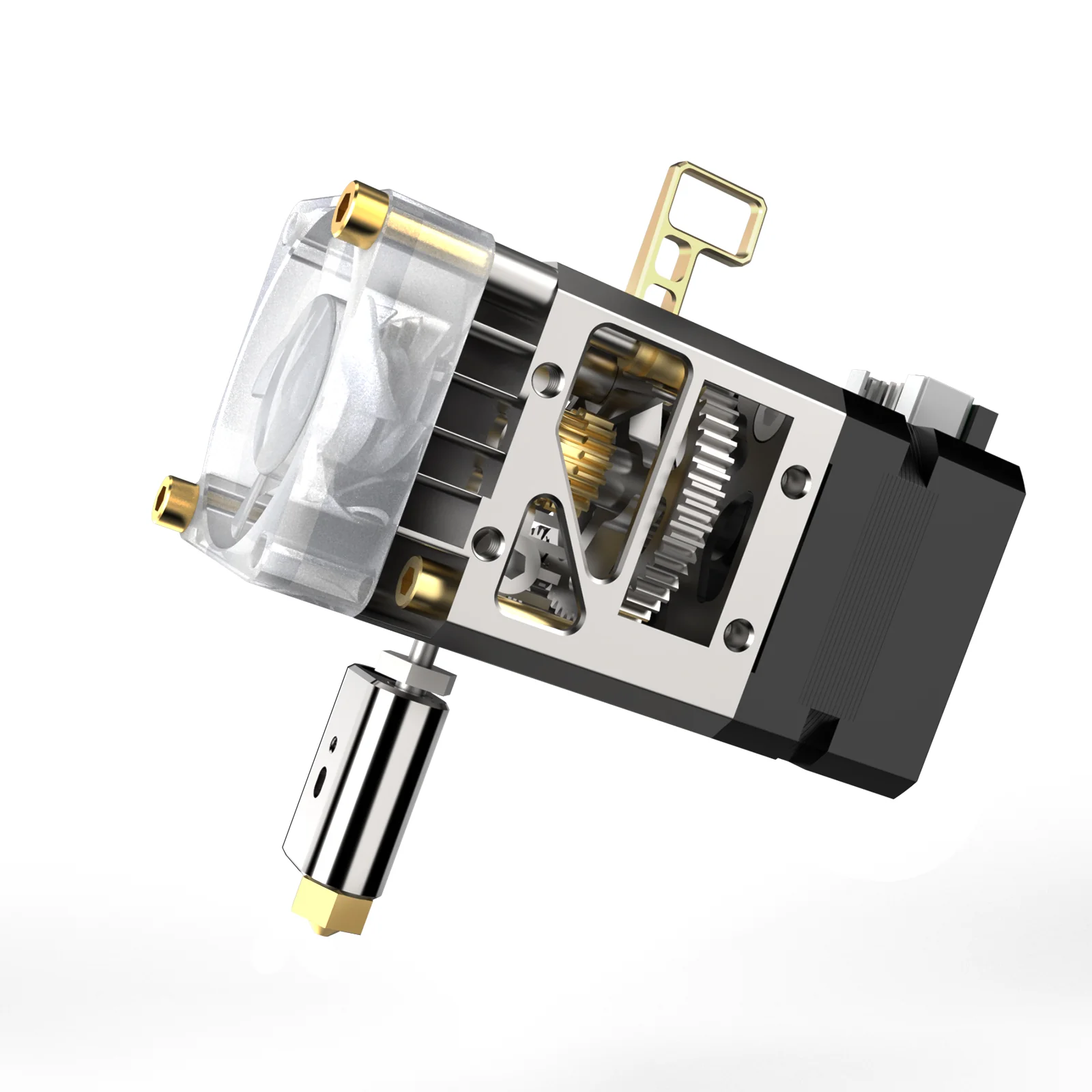

Dual Gear Feeding
\nFeaturing a dual-gear system to provide an exceptional pushing force, ensuring smooth feeding and giving snappy retractions.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/7-1661857191136_1200x.jpg?v=1661857207\")
Adjustable Filament Loading Tension
\nSimply rotate the tension screw to accommodate different filaments, improving the printing success rate.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-1-1661941906558_1200x.png?v=1661941913\")
Wide Compatibility
\nIt can collaborate with BIQU B1, BIQU BX Ender-3, Voron 2.4, Voron V0, and Vzbot.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-7-1661941912622_1200x.png?v=1661941919\")
What's in the Box
\nIt includes an extruder, user manual, cooling fan, cables, screws and so on.
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-2-1661941996647_1200x.png?v=1661942003\")
Aluminium Alloy Case
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-3-1661942004502_1200x.png?v=1661942011\")
Filament Drive Gear
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-4-1661942010198_1200x.png?v=1661942017\")
Idler Arm
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-5-1661942016561_1200x.png?v=1661942022\")

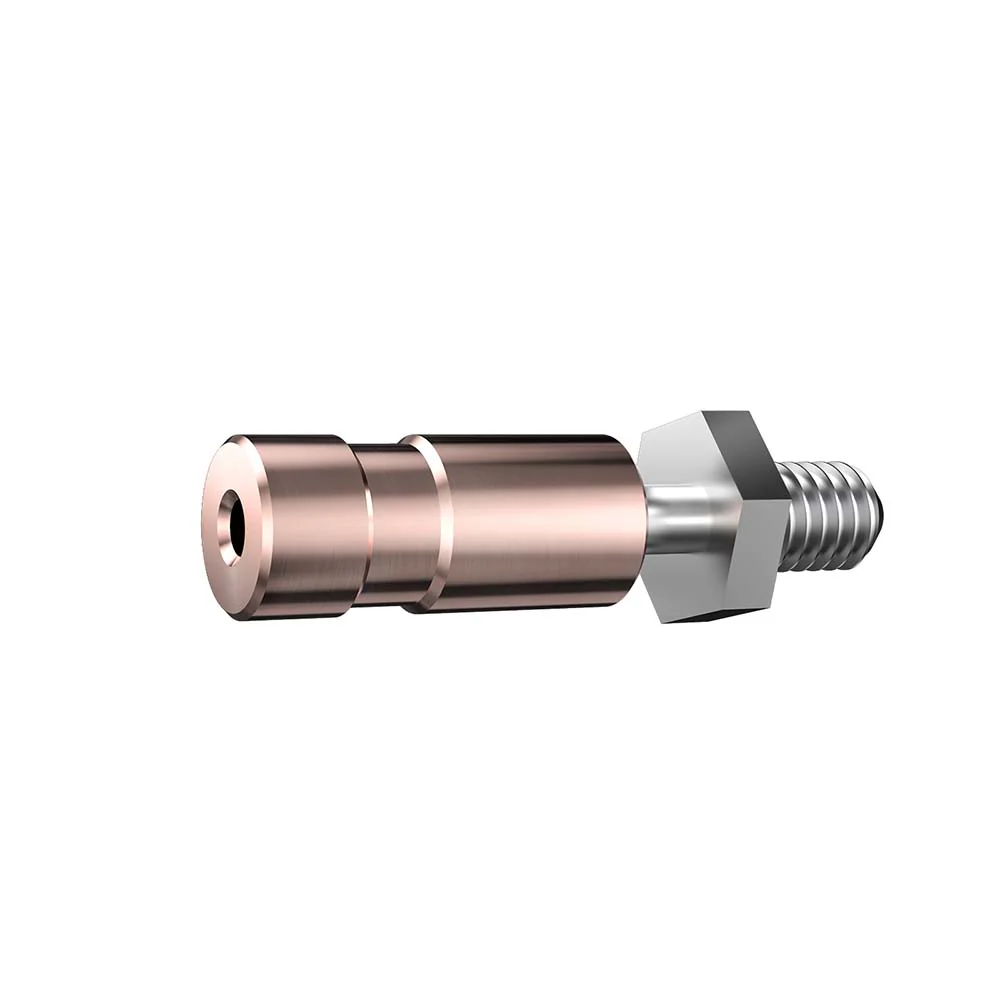

Heat Break
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-6-1661942021393_1200x.png?v=1661942028\")

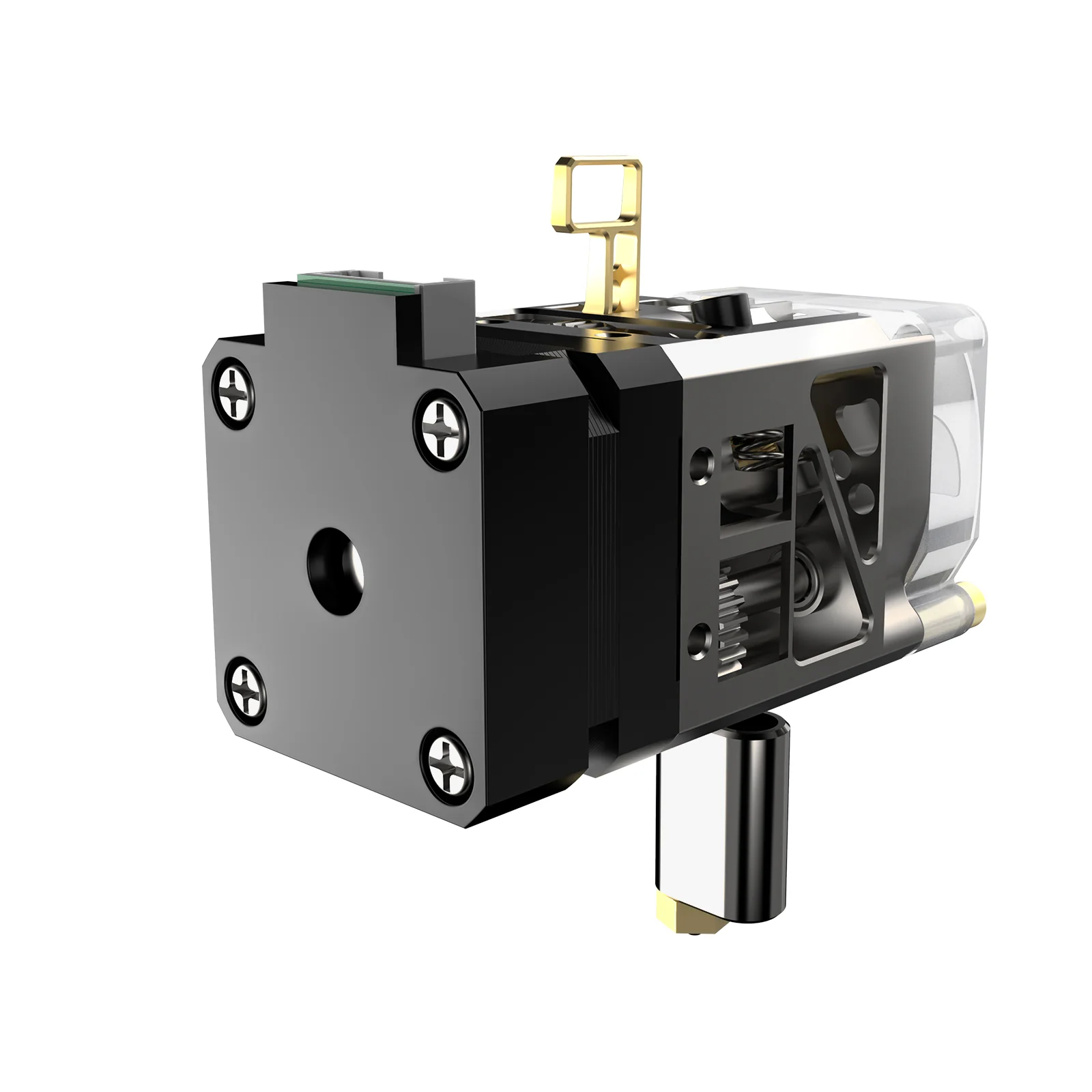

More Mounting Holes
\nDetails Make Perfect - Aluminium Alloy Case Crafted from aluminium alloy H2 V2S Lite is made for high durability,high strength,corrosion resistance, and above all, lightweight.
\nFilament Drive Gear - Made of tool steel plated with nano-coating to improve hardness wear resistance,corrosion resistance and provides longer life when printing abrasive materials.
\nIdler Arm - Made of 7075 T6 aluminum, with special blend high-performance anti-wear Mos2 grease to improve the quick release lever hap tics and enhance wear resistance.
\nHeat Break - H2 bi-metal(copper alloy + grade 5 titanium alloy). High performance thermal grease has been pre-applied to the heat break to increase thermal conductivity between the heat break and heat sink to improve cooling performance
\nMore Mounting Holes - 4 screw mounting holes are available for installing an auto leveling sensor cooling tan.

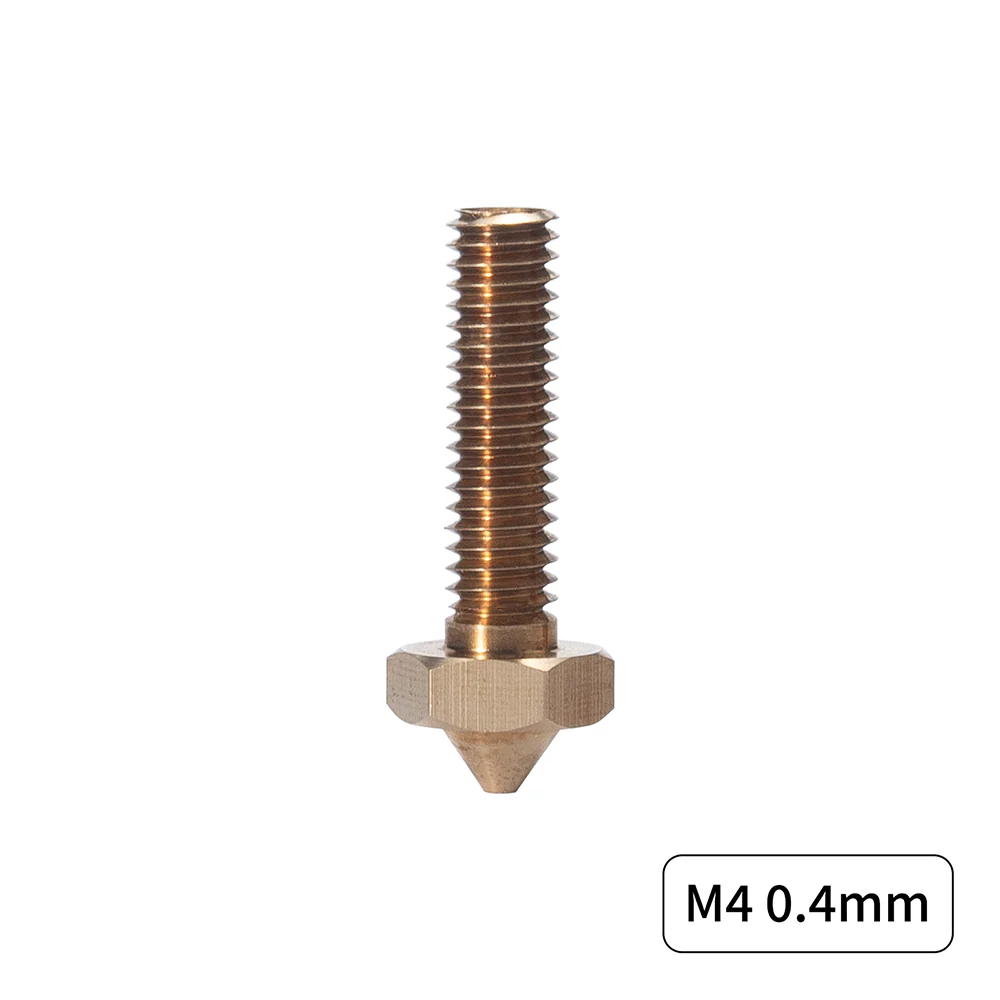

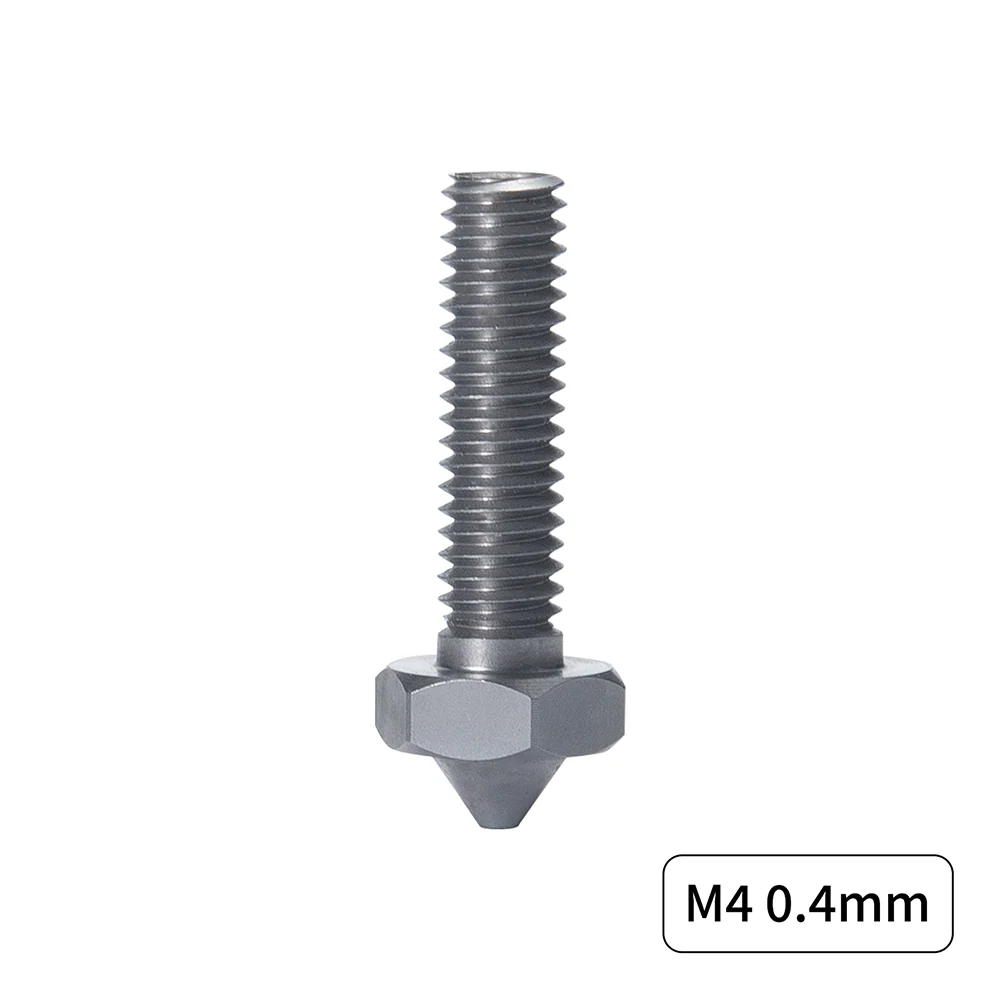

\n(Note: The nozzle is custom-made and will be released in the near future.)
\nDimensions & Specs
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/para-1661939890903_1200x.jpg?v=1661939910\")
Extrusion Method
\nDual Gear Extrusion
\nMaximum Printing Temperature
\n270℃
\nWeight
\n175g (including Heater Cartridge, Thermistor, and Fan)
\nMaximum Extrusion Force
\n7.5kg (depending on the filament)
\nExtrusion (based on the existing)
\n2700mm3/min (depending on the filaments)
\nE-step
\n932/mm at 16 microstep (Further calibration is recommended)
\nKlipper Rotation Distance
\n3.433
\nRecommended Motor Current
\n800mA
\nGear Ratio
\n7:1
\nDrive Gear Circumference
\n24.5mm
\nFilament Diameter and Tolerance
\n1.75±0.05mm
\nThermistor Type
\nNTC100K
\nHeater Cartridge Power
\n70W
\nHeater Cartridge Voltage
\n24V
\n*Note: Not compatible with standard NEMA14 motor.
\nQuick View Relavant Files
\n![](\"https://cdn.shopify.com/s/files/1/1619/4791/t/48/assets/-2-1661584696070_1200x.png?v=1661584697\")
STL Files
\n","image":["/images/biqugear.shop/images/product/h2-v2s-lite-1.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-2.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-3.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-4.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-5.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-6.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-7.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-8.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-9.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-10.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-11.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-12.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-13.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-14.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-15.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-16.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-17.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-18.jpg","/images/biqugear.shop/images/product/h2-v2s-lite-19.png","/images/biqugear.shop/images/product/h2-v2s-lite-20.png","/images/biqugear.shop/images/product/h2-v2s-lite-21.png","/images/biqugear.shop/images/product/h2-v2s-lite-22.png","/images/biqugear.shop/images/product/h2-v2s-lite-23.jpg"],"sku":"h2-v2s-lite","brand":{"@type":"Brand","name":"BIQU"},"offers":{"@type":"AggregateOffer","lowPrice":2.41,"highPrice":22.75,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://biqugear.shop/products/h2-v2s-lite","offerCount":7}}
BIQU H2 V2S Lite Extruder
Product Description
Upgrade your 3D printer with the BIQU H2 V2S Lite Lightweight Direct Drive Extruder — an all-in-one hotend and extruder designed for high-speed printing, reduced weight, and easy maintenance.
Weighing only 175g (including heater cartridge, thermistor, and fan), the H2 V2S Lite features a hollow-out aluminum alloy design for superior heat dissipation and lower inertia, resulting in more accurate positioning and faster printing. It delivers up to 45mm³/s flow rate thanks to the longer heater block and 0.6mm brass nozzle.
Key Features:
- Ultra-Lightweight (175g) — Reduces moving mass for better dynamics, less ringing, and higher acceleration
- High Flow Performance — 45mm³/s (2700mm³/min) for faster prints with standard and engineering filaments
- Dual Gear Extrusion — 7:1 gear ratio with hardened steel gears for strong 7.5kg pushing force and reliable retraction
- Quick-Detach Bi-Metal Heat Break — Copper + Grade 5 titanium with pre-applied thermal grease for easy maintenance using a hex key
- Labor-Saving Lever — Easy filament loading/unloading with adjustable tension screw for different filament types
- Improved Cooling — Enhanced heatsink and fan design for rapid cooling and stable high-temperature operation
- Max Temperature — 270°C with 70W 24V heater cartridge and NTC100K thermistor
Lighter and Better Heat Dissipation
Featuring a hollow-out design with a visible inner structure, H2 V2S Lite weighs only 175g, which contributes to less inertia and more accurate positioning.
Rapid Cooling
At the same time, the airflow is also improved to give better heat dissipation. Plus the heatsink and fan, H2 V2S Lite realizes a highly effective cooling.
Higher Flow. Faster Printing
Using a 0.6mm brass nozzle, and a longer heater block, H2 V2S Lite can output 45mm³/s to meet faster printing needs.
Labor-Saving Lever
The upgraded lever, a labor-saving and convenient design, eliminates the need to continuously hold the handle when inserting or removing filament.
Quick Detach Heat Break
Now, with the quick detach design, you are allowed to remove the heat break by simply using a hex key,making maintaining much easier and more convenient.
Dual Gear Feeding
Featuring a dual-gear system to provide an exceptional pushing force, ensuring smooth feeding and giving snappy retractions.
Adjustable Filament Loading Tension
Simply rotate the tension screw to accommodate different filaments, improving the printing success rate.
Wide Compatibility
It can collaborate with BIQU B1, BIQU BX Ender-3, Voron 2.4, Voron V0, and Vzbot.
What's in the Box
It includes an extruder, user manual, cooling fan, cables, screws and so on.
Details Make Perfect - Aluminium Alloy Case Crafted from aluminium alloy H2 V2S Lite is made for high durability,high strength,corrosion resistance, and above all, lightweight.
Filament Drive Gear - Made of tool steel plated with nano-coating to improve hardness wear resistance,corrosion resistance and provides longer life when printing abrasive materials.
Idler Arm - Made of 7075 T6 aluminum, with special blend high-performance anti-wear Mos2 grease to improve the quick release lever hap tics and enhance wear resistance.
Heat Break - H2 bi-metal(copper alloy + grade 5 titanium alloy). High performance thermal grease has been pre-applied to the heat break to increase thermal conductivity between the heat break and heat sink to improve cooling performance
More Mounting Holes - 4 screw mounting holes are available for installing an auto leveling sensor cooling tan.
(Note: The nozzle is custom-made and will be released in the near future.)
Dimensions & Specs
Extrusion Method
Dual Gear Extrusion
Maximum Printing Temperature
270℃
Weight
175g (including Heater Cartridge, Thermistor, and Fan)
Maximum Extrusion Force
7.5kg (depending on the filament)
Extrusion (based on the existing)
2700mm3/min (depending on the filaments)
E-step
932/mm at 16 microstep (Further calibration is recommended)
Klipper Rotation Distance
3.433
Recommended Motor Current
800mA
Gear Ratio
7:1
Drive Gear Circumference
24.5mm
Filament Diameter and Tolerance
1.75±0.05mm
Thermistor Type
NTC100K
Heater Cartridge Power
70W
Heater Cartridge Voltage
24V
*Note: Not compatible with standard NEMA14 motor.
Quick View Relavant Files
STL Files
Original: $6.88
-65%$6.88
$2.41Product Information
